Stock Custom Chimney Caps

Protect and extend the life of you flue and chimney.



Custom Chimney Caps

LIFETIME WARRANTY

Covers entire flue areas and crown surfaces, will protect from deterioration

Bolts secure top and side assembly components slide together quickly and easily

Click to see some Job Photos

The multi cap is what it is, a great thing. This cap can be used for anything from a single flue to a bunch of flues either misaligned, broken, different heights, rounds mixed with squares, (you get the idea) and is easy to install.
Measuring is good, and be aware of the flue heights for proper draft.   Standard mesh height is 10" for these caps.
If a single flue or any flue within a group is 5" high or more, a taller mesh custom cap may be required.
 Installation will require some drilling. This cap has a flange that will be mechanically fastened via lags and screws to the top of the crown. A good feature of this cap is that the top is removable by 4 bolts that will allow access for chimney cleaning.
If you are burning wood, a 5/8" spark arrestor  mesh can be used, check your local Code.

Sometimes the most economical solution to a chimney flue downdraft, wind related puff back or chimney odor problem is a simple chimney cap.


529 available sizes of stock custom chimney caps
24 gauge hood  &  18 gauge one piece base with built-in screening
Type 304 Stainless Steel  -   Animal proof  -  Available in custom sizes  -  Available in copper
3/4" mesh is standard or choose 5/8" spark arrestor mesh  -  Superior oval hole mesh prevents creosote build up in corners
Knock-down (unassembled in 5 pieces) packaging allows for savings and easy shipping!!
Top unscrews for easy future care cleanings   Lid overhangs mesh 3 1/2" on 4 sides.


529 different sizes!!!  Which size do I choose?????

  Since these caps attach to the crown we like to recommend a size where the mesh of the cap is half way between the flues and the edge of the chimney.  Larger is better.

Try to keep the mesh at least 3-4 inches in from the edge as the flange adds 1 1/4" (all around) to the "foot print" of the mesh.  Don't worry about the lid of the chimney cap... it is not recommended that it overhangs the chimney.  Click to see some Job Photos

Call 800 685 8263 ..... we will always review the measurements and help size your chimney cap.

Chimney Cap Measuring
for single, double & multi flue chimney caps made easy.....
Lets climb that ladder once..... measure "everything" twice.

Chimney cap measuring for single double and multi flue chimney caps

Always measure a flue side to side, never corner to corner.

A flue may be square, rectangular, oval or round.  Measure accordingly.

Provide the inner and outer measurement to size other options such as top sealing dampers.

If the spacing between the flues is wide enough single caps may be used instead of double or multi flue caps.

If the flues are flush, recessed or it's just a "hole"... measure it's opening in the crown.

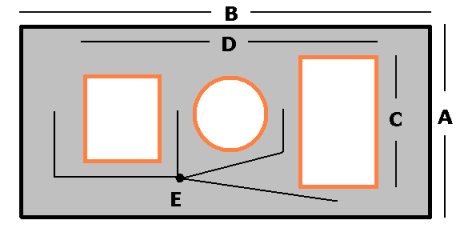

A & B  Measure to the OUTER most edge of the chimney's top.  The chimney's cement "crown".
C & D
  Measure the span or OUTER most edge of each flue or group of flues.
E
  Measure EVERYTHING else...spacing between the flues, the spacing to each edge of the chimney, etc.

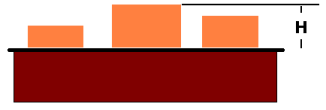

H
Measure the height of the flue or highest flue in the group.

 Flue Liner -- Usually a high temperature clay (fireclay).  A round, square or rectangular sleeve lining the interior of masonry chimneys.  This is the pathway in which the "smoke" or flue gases pass through to exit into the atmosphere.
(Some chimney were constructed with no clay liner or metal pipe was used as the flue pipe.)
**Always measure a flue side to side, never corner to corner.

Chimney Crown -- Also called a "wash"... is usually a cement topping around the flues and tapered to the chimneys sides to shed water.
(Some crowns are tapered more than others and may create a more difficult cap installation.)



529 sizes of Stock Custom Chimney Caps to choose from!
Sizes are ordered by the "mesh" measurement

10" x 10"
10" x 14"
10" x 17"
10" x 19"
10" x 21"
10" x 23"
10" x 25"
10" x 27"
10" x 29"
10" x 31"
10" x 33"
10" x 35"
10" x 37"
10" x 39"
10" x 41"
10" x 43"
10" x 45"
10" x 47"
10" x 49"
10" x 51"
10" x 53"
10" x 55"
10" x 58"
14" x 10"
14" x 14"
14" x 17"
14" x 19"
14" x 21"
14" x 23"
14" x 25"
14" x 27"
14" x 29"
14" x 31"
14" x 33"
14" x 35"
14" x 37"
14" x 39"
14" x 41"
14" x 43"
14" x 45"
14" x 47"
14" x 49"
14" x 51"
14" x 53"
14" x 55"
14" x 58"
17" x 10"
17" x 14"
17" x 17"
17" x 19"
17" x 21"
17" x 23"
17" x 25"
17" x 27"
17" x 29"
17" x 31"
17" x 33"
17" x 35"
17" x 37"
17" x 39"
17" x 41"
17" x 43"
17" x 45"
17" x 47"
17" x 49"
17" x 51"
17" x 53"
17" x 55"
17" x 58"
19" x 10"
19" x 14"
19" x 17"
19" x 19"
19" x 21"
19" x 23"
19" x 25"
19" x 27"
19" x 29"
19" x 31"
19" x 33"
19" x 35"
19" x 37"
19" x 39"
19" x 41"
19" x 43"
19" x 45"
19" x 47"
19" x 49"
19" x 51"
19" x 53"
19" x 55"
19" x 58"
21" x 10"
21" x 14"
21" x 17"
21" x 19"
21" x 21"
21" x 23"
21" x 25"
21" x 27"
21" x 29"
21" x 31"
21" x 33"
21" x 35"
21" x 37"
21" x 39"
21" x 41"
21" x 43"
21" x 45"
21" x 47"
21" x 49"
21" x 51"
21" x 53"
21" x 55"
21" x 58"
23" x 10"
23" x 14"
23" x 17"
23" x 19"
23" x 21"
23" x 23"
23" x 25"
23" x 27"
23" x 29"
23" x 31"
23" x 33"
23" x 35"
23" x 37"
23" x 39"
23" x 41"
23" x 43"
23" x 45"
23" x 47"
23" x 49"
23" x 51"
23" x 53"
23" x 55"
23" x 58"
25" x 10"
25" x 14"
25" x 17"
25" x 19"
25" x 21"
25" x 23"
25" x 25"
25" x 27"
25" x 29"
25" x 31"
25" x 33"
25" x 35"
25" x 37"
25" x 39"
25" x 41"
25" x 43"
25" x 45"
25" x 47"
25" x 49"
25" x 51"
25" x 53"
25" x 55"
25" x 58"
27" x 10"
27" x 14"
27" x 17"
27" x 19"
27" x 21"
27" x 23"
27" x 25"
27" x 27"
27" x 29"
27" x 31"
27" x 33"
27" x 35"
27" x 37"
27" x 39"
27" x 41"
27" x 43"
27" x 45"
27" x 47"
27" x 49"
27" x 51"
27" x 53"
27" x 55"
27" x 58"
29" x 10"
29" x 14"
29" x 17"
29" x 19"
29" x 21"
29" x 23"
29" x 25"
29" x 27"
29" x 29"
29" x 31"
29" x 33"
29" x 35"
29" x 37"
29" x 39"
29" x 41"
29" x 43"
29" x 45"
29" x 47"
29" x 49"
29" x 51"
29" x 53"
29" x 55"
29" x 58"
31" x 10"
31" x 14"
31" x 17"
31" x 19"
31" x 21"
31" x 23"
31" x 25"
31" x 27"
31" x 29"
31" x 31"
31" x 33"
31" x 35"
31" x 37"
31" x 39"
31" x 41"
31" x 43"
31" x 45"
31" x 47"
31" x 49"
31" x 51"
31" x 53"
31" x 55"
31" x 58"
33" x 10"
33" x 14"
33" x 17"
33" x 19"
33" x 21"
33" x 23"
33" x 25"
33" x 27"
33" x 29"
33" x 31"
33" x 33"
33" x 35"
33" x 37"
33" x 39"
33" x 41"
33" x 43"
33" x 45"
33" x 47"
33" x 49"
33" x 51"
33" x 53"
33" x 55"
33" x 58"
35" x 10"
35" x 14"
35" x 17"
35" x 19"
35" x 21"
35" x 23"
35" x 25"
35" x 27"
35" x 29"
35" x 31"
35" x 33"
35" x 35"
35" x 37"
35" x 39"
35" x 41"
35" x 43"
35" x 45"
35" x 47"
35" x 49"
35" x 51"
35" x 53"
35" x 55"
35" x 58"
37" x 10"
37" x 14"
37" x 17"
37" x 19"
37" x 21"
37" x 23"
37" x 25"
37" x 27"
37" x 29"
37" x 31"
37" x 33"
37" x 35"
37" x 37"
37" x 39"
37" x 41"
37" x 43"
37" x 45"
37" x 47"
37" x 49"
37" x 51"
37" x 53"
37" x 55"
37" x 58"
39" x 10"
39" x 14"
39" x 17"
39" x 19"
39" x 21"
39" x 23"
39" x 25"
39" x 27"
39" x 29"
39" x 31"
39" x 33"
39" x 35"
39" x 37"
39" x 39"
39" x 41"
39" x 43"
39" x 45"
39" x 47"
39" x 49"
39" x 51"
39" x 53"
39" x 55"
39" x 58"
41" x 10"
41" x 14"
41" x 17"
41" x 19"
41" x 21"
41" x 23"
41" x 25"
41" x 27"
41" x 29"
41" x 31"
41" x 33"
41" x 35"
41" x 37"
41" x 39"
41" x 41"
41" x 43"
41" x 45"
41" x 47"
41" x 49"
41" x 51"
41" x 53"
41" x 55"
41" x 58"
43" x 10"
43" x 14"
43" x 17"
43" x 19"
43" x 21"
43" x 23"
43" x 25"
43" x 27"
43" x 29"
43" x 31"
43" x 33"
43" x 35"
43" x 37"
43" x 39"
43" x 41"
43" x 43"
43" x 45"
43" x 47"
43" x 49"
43" x 51"
43" x 53"
43" x 55"
43" x 58"
45" x 10"
45" x 14"
45" x 17"
45" x 19"
45" x 21"
45" x 23"
45" x 25"
45" x 27"
45" x 29"
45" x 31"
45" x 33"
45" x 35"
45" x 37"
45" x 39"
45" x 41"
45" x 43"
45" x 45"
45" x 47"
45" x 49"
45" x 51"
45" x 53"
45" x 55"
45" x 58"
47" x 10"
47" x 14"
47" x 17"
47" x 19"
47" x 21"
47" x 23"
47" x 25"
47" x 27"
47" x 29"
47" x 31"
47" x 33"
47" x 35"
47" x 37"
47" x 39"
47" x 41"
47" x 43"
47" x 45"
47" x 47"
47" x 49"
47" x 51"
47" x 53"
47" x 55"
47" x 58"
49" x 10"
49" x 14"
49" x 17"
49" x 19"
49" x 21"
49" x 23"
49" x 25"
49" x 27"
49" x 29"
49" x 31"
49" x 33"
49" x 35"
49" x 37"
49" x 39"
49" x 41"
49" x 43"
49" x 45"
49" x 47"
49" x 49"
49" x 51"
49" x 53"
49" x 55"
49" x 58"
51" x 10"
51" x 14"
51" x 17"
51" x 19"
51" x 21"
51" x 23"
51" x 25"
51" x 27"
51" x 29"
51" x 31"
51" x 33"
51" x 35"
51" x 37"
51" x 39"
51" x 41"
51" x 43"
51" x 45"
51" x 47"
51" x 49"
51" x 51"
51" x 53"
51" x 55"
51" x 58"
53" x 10"
53" x 14"
53" x 17"
53" x 19"
53" x 21"
53" x 23"
53" x 25"
53" x 27"
53" x 29"
53" x 31"
53" x 33"
53" x 35"
53" x 37"
53" x 39"
53" x 41"
53" x 43"
53" x 45"
53" x 47"
53" x 49"
53" x 51"
53" x 53"
53" x 55"
53" x 58"
55" x 10"
55" x 14"
55" x 17"
55" x 19"
55" x 21"
55" x 23"
55" x 25"
55" x 27"
55" x 29"
55" x 31"
55" x 33"
55" x 35"
55" x 37"
55" x 39"
55" x 41"
55" x 43"
55" x 45"
55" x 47"
55" x 49"
55" x 51"
55" x 53"
55" x 55"
55" x 58"
58" x 10"
58" x 14"
58" x 17"
58" x 19"
58" x 21"
58" x 23"
58" x 25"
58" x 27"
58" x 29"
58" x 31"
58" x 33"
58" x 35"
58" x 37"
58" x 39"
58" x 41"
58" x 43"
58" x 45"
58" x 47"
58" x 49"
58" x 51"
58" x 53"
58" x 55"
58" x 58"
LIFETIME WARRANTY       U.S. PATENT NO. 4,732,078 And remember, measure twice order once.


Call 1-800-685-8263 or e-mail us at volkosupply@yahoo.com

single flue chimney cap

double flue chimney cap

multi flue chimney cap

round chimney cap

turbines

Single Caps Double Caps Multiple Caps Round Caps Turbines

vacu stacks

weather Shield caps

Lyemance Dampers

Exhausto Chimney Fans

Vacu Stacks Weather Shield Caps Damper Caps Chimney Fans


Click the links below for some tips and explanations....

CHIMNEYS 101  Understand how a chimney works, and sometimes why it won't.


FIREWOOD     Know your wood... firewood do's and don'ts.



Go to Downdraft & Wind Loading Explanations.

      Go to Spark Arrestor Explanations.
